draw-io / draw.io diagram generator

Generate and validate production-quality draw.io XML diagrams with strict style, structure, routing, and text rules.

candidatedrawiodrawioxml

draw-io / draw.io diagram generator preview

draw-io-diagram-generator

Why It Is Here

This project is more than a prompt-style skill: it includes a draw.io XML quality standard, examples, validator rules, and a CLI. That makes it useful for keeping generated .drawio files production-ready instead of merely renderable.

Best For

Native draw.io diagrams that need manual editing later.
Diagrams requiring strict edge routing, font rules, containers, and layers.
Teams that want CI checks for generated diagram files.

Evaluation Notes

Strengths: validator-backed rules, native XML output, documented non-goals, useful example set.
Weaknesses: requires a draw.io rendering/export path for screenshots; full benefit depends on adopting the validator.
Open questions: whether this repository should vendor the upstream validator or only consume it as an external tool.

Artifacts

Example: examples/request-flow.drawio

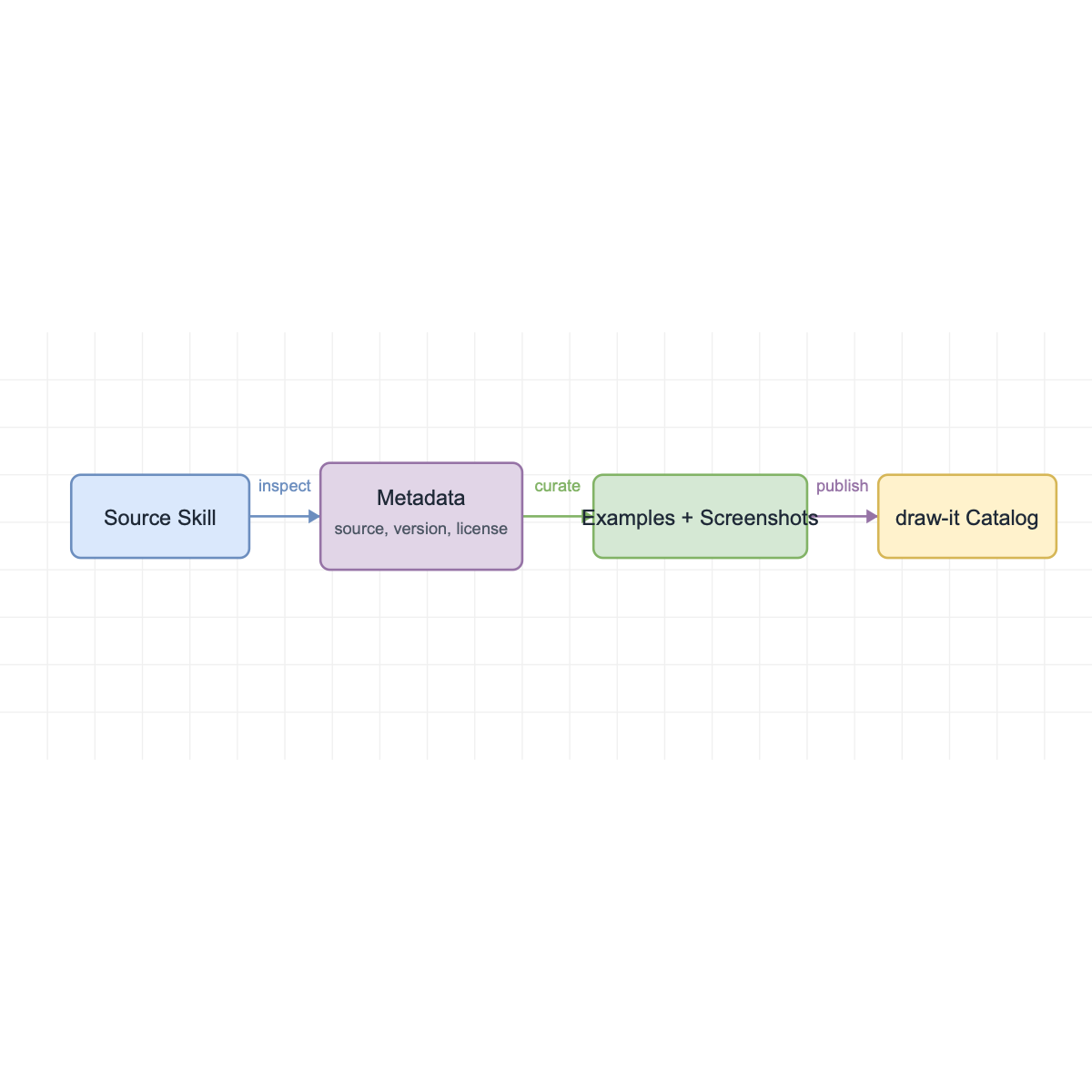

Preview: screenshots/request-flow-preview.png
Editable preview source: screenshots/request-flow-preview.svg

Maintenance

Last checked: 2026-04-26
Next action: try upstream validator against local examples and decide whether to add CI.

Artifacts

Name	Kind	Description
request-flow.drawio	drawio	Self-made native draw.io XML example for a skill intake flow.
request-flow-preview.png	png	PNG screenshot generated from the vector preview.
request-flow-preview.svg	svg	Lightweight editable preview of the draw.io example.
